1️⃣ Introduction
Softboards have become one of the most versatile and popular surfboard categories in today’s market. From surf schools to premium epoxy soft models, their appeal lies in comfort, safety, and accessibility. But behind every softboard lies a complex and highly refined manufacturing process. In this article, we’ll walk through each stage of softboard production—from the EPS core molding to final finishing and accessory installation—to help OEM buyers understand what defines true manufacturing quality.
2️⃣ EPS Core Molding

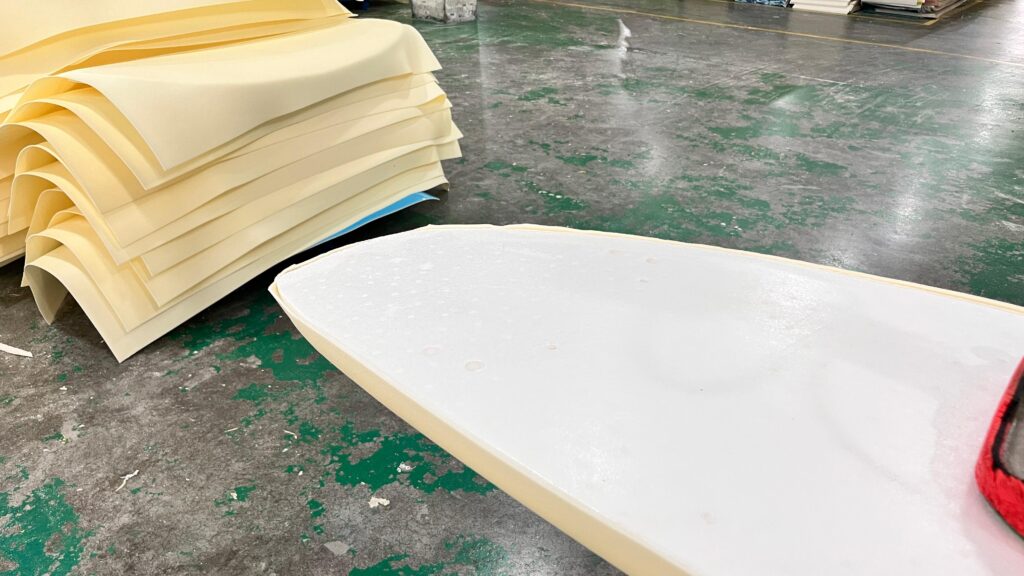

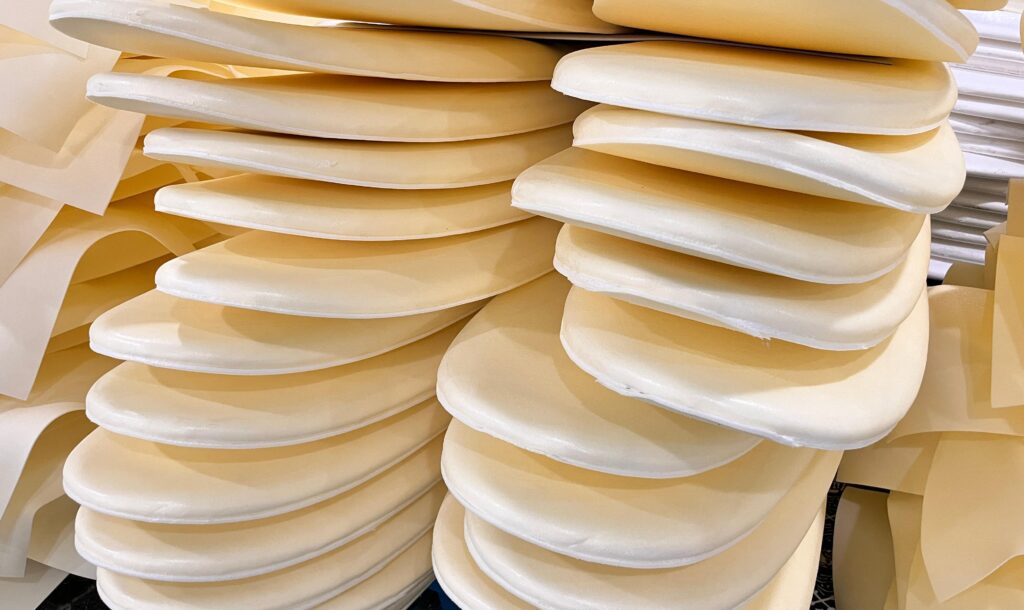

The foundation of every softboard starts with an EPS (Expanded Polystyrene) foam core. Manufacturers use precision molds to shape the blank. The foam is expanded with steam and pressure, filling the mold cavity to achieve consistent density and volume. After cooling, the molded core is removed and lightly trimmed，later dry it
3️⃣ Surface Trimming and Sanding

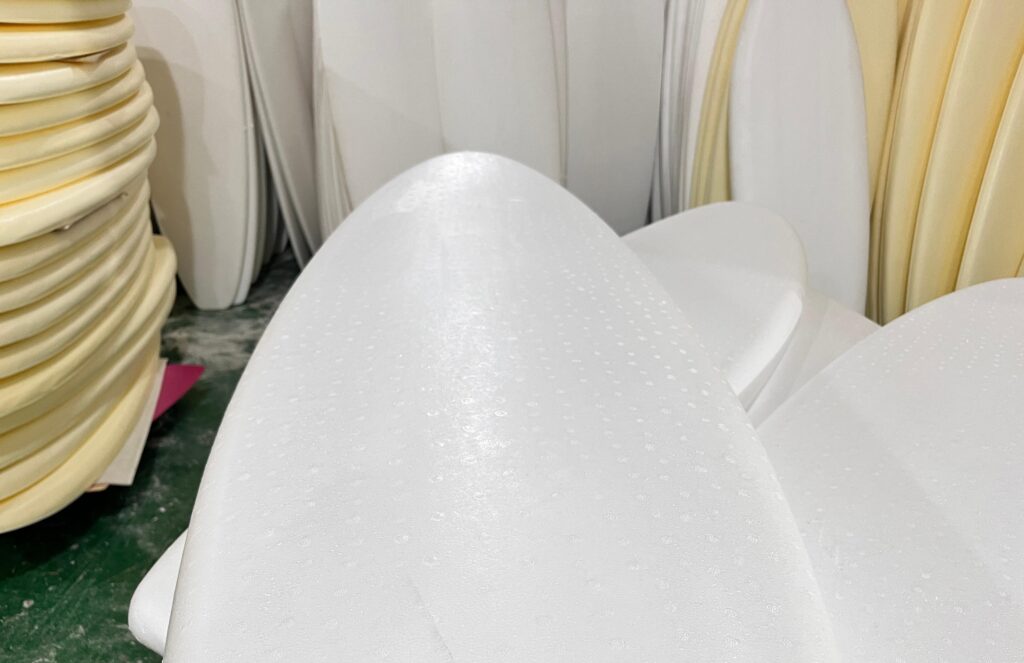

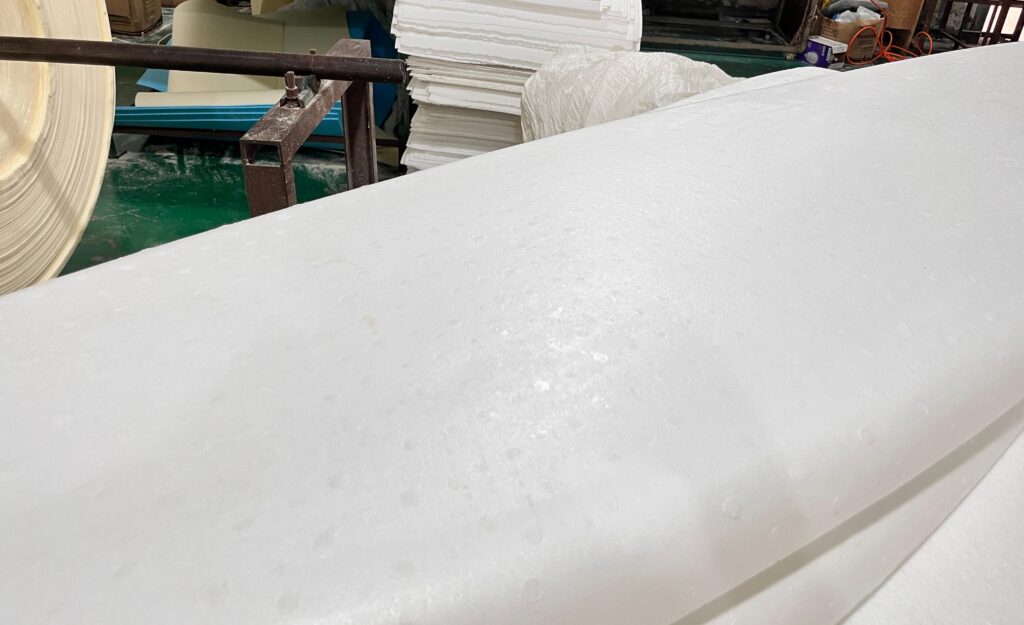

Once the EPS core is formed, the next step is surface trimming and sanding. This stage removes surface burrs or flash left from the mold and smooths out the shape. Skilled technicians ensure the rails and contours are consistent with design specifications before lamination.
4️⃣ Thermal Lamination of Structural Layers

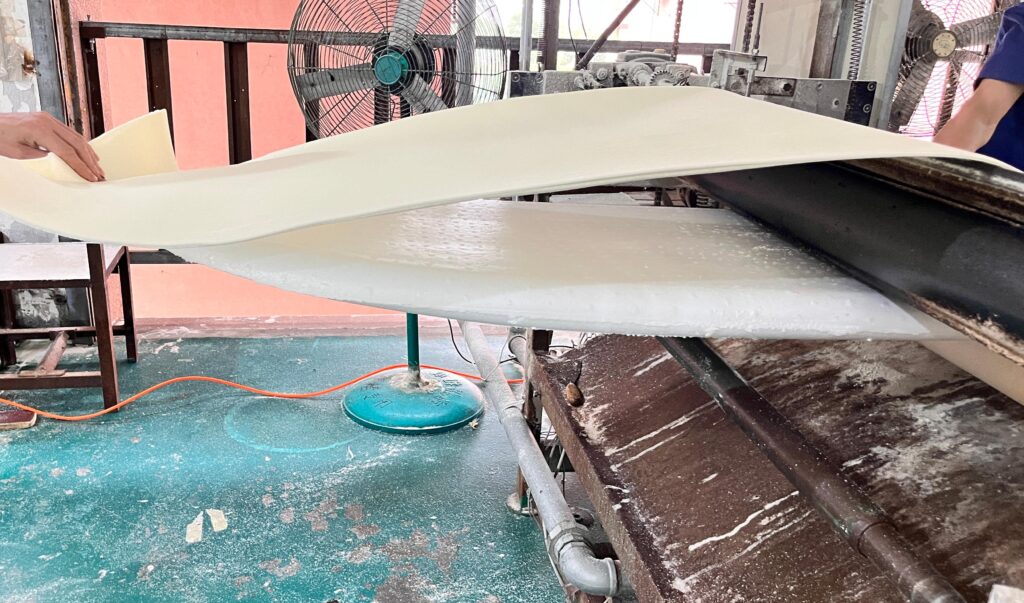

The heart of softboard construction lies in thermal lamination. Specialized heating and pressure systems bond layers to the EPS core. These structural fabrics typically include xpe,epo,PE/IXPE,mesh sheets, which add stiffness and impact resistance. Heat and pressure must be precisely controlled to ensure even bonding without damaging the core.
5️⃣ Edge Cutting and Manual Reinforcement
After lamination, excess material around the rails and outline is precisely trimmed. Machines handle most cutting, but areas like nose curves and tail edges require manual bonding. Skilled craftsmen use heat tools to hand-fit these complex shapes, ensuring seamless structure and durability.
6️⃣ Deck and Bottom Lamination
Next comes the lamination of the outer deck and bottom slick layers. The deck (top surface) is covered with IXPE, PE sheets, providing a soft touch and anti-slip finish. The bottom slick is made from HDPE or similar smooth plastic material that enhances glide and durability. These layers are heat-pressed onto the structural core. Temperature and alignment accuracy are critical—improper heat can cause surface bubbles or weak bonding.
7️⃣ Printing and Branding
Once the deck and bottom layers are attached, the board surface is ready for printing. Modern factories use screen printing to apply graphics, logos, and measurement marks. The ink and film must be compatible with IXPE or PE surfaces to ensure color durability and UV resistance.
8️⃣ Assembly and Accessory Installation
The final manufacturing phase includes installing functional accessories such as leash plugs, fin boxes, handles, or screw-in fins. These components are pre-cut into the core and reinforced with epoxy or plastic inserts. After installation, each connection is sealed to prevent water intrusion.
9️⃣ Final Inspection and Finishing
Before packaging, each softboard undergoes a full quality inspection. Technicians check weight, dimensions, lamination quality, surface smoothness, and print accuracy. Boards are cleaned, edges polished, and packed in protective sleeves with bubble wrap or cardboard corners.
�� Conclusion
Softboard manufacturing combines engineering precision with craftsmanship. Each step—from EPS molding to thermal lamination, trimming, deck bonding, printing, and assembly—contributes to durability, safety, and overall ride feel. For OEM buyers, understanding this process helps in evaluating factory quality, production capability, and attention to detail—ensuring your softboard line performs as well as it looks.
